Jeff's turbo Toyota Corona Wagon
 |
 |
 |
 |
 |
 |
Name: Jeff Clancey
Occupation: I.T.
Location: S.E. Qld
Car Make: Toyota
Car Model: Corona Wagon
Car Year: 1977, original 337,000 km's guaranteed!
Engine Details:
Engine:
18RGEU, standard head, standard internals with O-ringed
block, 2mm copper head gasket, standard cams. (approx 7.5:1 compression)
Fuel and ignition:
Standard 18RGEU intake with 2.5" throttle body,
series 4 RX-7 550cc injectors, Microtech MTX-8, custom made crank angle
sensor (based on a Toyota 3S-GE item), quad Bosch coils.
Turbo and induction:

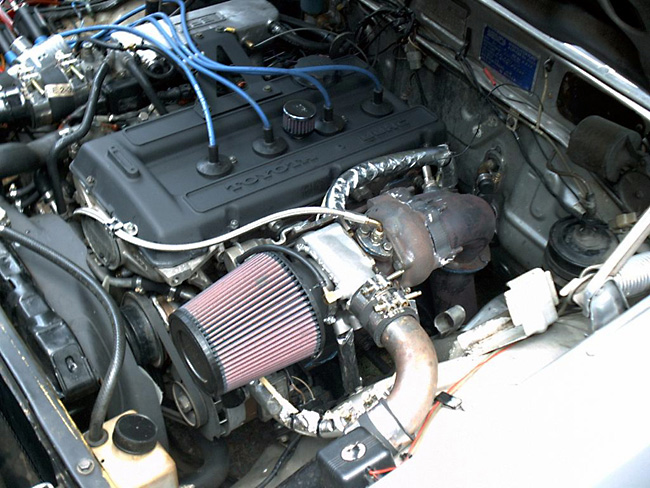

T3 turbo (RB30), factory actuator & internal wastegate,
K&N air filter, custom made turbo manifold, custom made intercooling
piping, 2-stage electronic boost controller (8 or 16psi normally :), Pulsar
GTi-R intercooler, AVO blow-off valve.
Exhaust:
3” dump off the turbo, 3” high flow cat,
3” mandrel bent exhaust, straight through muffler.
Driveline: RPM clutch (still not enough), rebuilt Celica steel case 5-speed, standard Borg Warner diff.
Brakes: Standard discs with Sumitomo 2-Spot calipers front (Bendix pads) and standard drums rear.
Suspension Front: Super Low King springs with Koni adjustable shocks.
Suspension Rear: Standard leaf springs with Koni adjustable shocks
Rolling Stock: 14x6" Datsun 200B-SX rims, 195/65-R14 Goodyear Eagle Ventura tyres.
Bodywork and Paint: Ford Quicksilver paint, custom rolled guards (where are my pliers again?).
Interior Gadgetry: Microtech handset, later model Toyota bucket seats, Autotechnia wheel, Autometer boost gauge.
Stereo Gear: Rockford Fosgate front load CD-Player, Rockford Fosgate 8-stack CD-player, Alpine 6" splits (front), Jaycar Response 6x9s (eear), 2 x Kicker 10" subs, two Jaycar amps with more wiring and filtration gear than you could poke a stick at.
Future Mods:
- New clutch
- Swap front springs and lower back
- Cold air induction
- In-dash tacho
More Information:
"After my original 18R motor started to use more oil than fuel I decided to either get rid of the old Rona or turn it in the sleeper from hell :) So I decided to keep it, after I ran the little bitch on a NA 18RGEU for a while I decided to do something a little more drastic to improve its performance (and also to destroy any would be falcadores that might try anything, I'm just talking tough, much respect to Fords and Holdens :)). Anyway she's practically done now and I couldn't be happier, just got get my clutch sorted so I can take it for a decent pass down the quarter."
