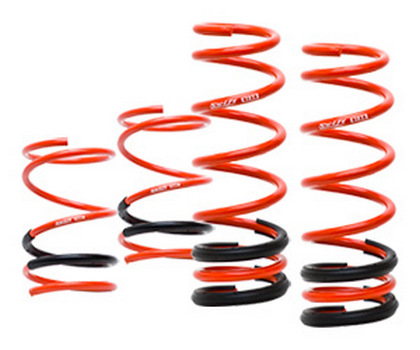

Swift Springs Sport Springs

06-14 Lexus IS350

Description:
Drop Front: -1.0 Inch

Drop Rear: -0.8 Inch

Spring Rate Front: 301 Lbs/Inch

Spring Rate Rear: 313 Lbs/Inch

Let superior performance and comfort lower your car

Swift made Sport Springs keeps the quality ride you get from the showroom, and adds improved handling and lower ride height for driving enthusiasts and style minded drivers who demand only the best.

Swift did not develop the Sport Springs line by simply dropping the ride height. Unlike other manufacturers whose sole focus was style, Swift approached the creation of these lowering springs with 3 goals.

Maintain or improve a smooth, comfortable ride.

Increase handling by reducing body roll and squat in search of overall suspension balance.

Lower the vehicle within tolerance of each vehicle's usable stroke

Every cars have their usable strokes

Most enthusiasts have had experiences with the typical harsh and uncomfortable ride from lowering springs. Performance is often overlooked by manufactures simply because it is easier to lower a vehicle for aesthetics. The end result is usually a bumpy ride that causes a decrease in traction, or excessive worn shocks caused by lowering the vehicle beyond the usable stroke.

Proprietary material and design to satisfy two contrasting factors

As you can imagine, keeping or improving the comfort level while increasing performance is not an easy task, especially since these two aspects contrast with each other.

Where most of the competition simply gave in to the easier method, Swift Springs decided to tackle this issue by creating their own material (H5S.TW), and unique manufacturing method that works very well for this material. Working in unison, the material and manufacturing method provides a superior level for both comfort and handling.

The way Swift designs the lowering springs

Swift utilize spring design with fewer coils which not only allows us to decrease un-sprung mass but to also completely eliminate the chance of coil bind, while increasing the amount of usable stroke. Swift's proprietary material (H5S.TW) has a much quicker transient response, reacting to any road conditions which, in turn, cause a much smoother ride where other springs will skip on the harsh road surface, their spring will react to the road surface as needed.

With the Swift Sport Springs, they expect both street and circuit users to experience an increase in all aspects of suspension tuning from performance to comfort.

Bump Rubber

Suspension usable stroke for the cars now a day is very limited compared to before. To let the suspension do its own job efficiently, many car manufactures use bump rubber as a part of a suspension's functional part, not only to limit the shock stroke but to prevent the shocks from bottoming out. This scenario also applies to real world racing, and they use this as a primary focus when designing the sport springs.

Vehicle characteristics

Swift developed each Sport Springs application based on the individual vehicle's unique characteristic. Put simply, a luxury car will maintain its luxury ride, and sports car will maintain its sports car feel.
