Air Runner "On The Ground" Suspension System
Part #: 3140
$6,999.00
$6,859.02
For each
For each
Free Shipping! *to continental U.S. only
Fits On:
05-10 Lexus SC430 (40)
Description:

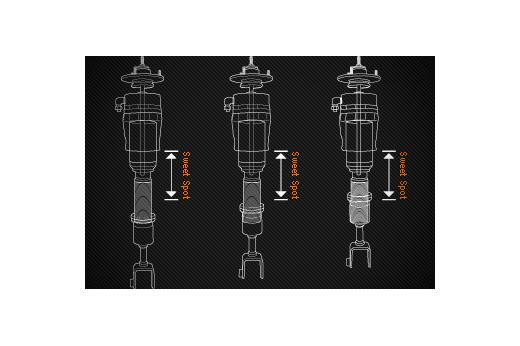

ACC hybrid technology fuses coilover and air bag technology into one sleek package. The On the Ground system allows you to obtain the optimum performance and ride comfort for your vehicle. The damper “sweet spot” is obtained by adjusting the locking collars and positioning the shock piston in into its optimum position.
The theory of “On the Ground” is to allow the user to precisely tune the ride height and the bag pressure to suit their driving preference. By keeping the bag pressure at a given pressure rating, you can maintain the associated spring rate. From there, you can adjust your ride height by using the threaded collars (maximum adjustment is 50mm). By maintaining the shock/strut height, it will be in the optimum working position known as the “sweet spot.”
The suspension can be adjusted with precision through the use of the locking collars which allows you to “fine tune” the ride to your liking. Air Runner “Maximum Drop” technology allows the lowest possible vehicle height.
Features:
* Engineered to be installed in a bolt-on fashion.
* 4-wheel independent switches allow the suspension to be fine-turned to your performance needs especially while cornering when roll generated by air flow can resistant.
* The stainless steel braided leader hose has excellent flexibility and comes with a buit-in check valve to prevent back flow to the air tank.
* A schrader inflation valve allows for a quick fill up of your air tank during an emergency situation.
* Air Runner 380C Viair compressors have excellent durability for long-term service.
* Choose from a 4-gallon stainless steel tank or 4-gallon pancake tank.
* Pressure switches are pre selected for each of our applications.
* Unique “W-Lock” fittings squeeze the air line from both the inside and outside to prevent air leaks.
* Each kit includes 100ft D.O.T. approved 1/4″ air line and other meticulously selected components.
* Operation manuals and installation manuals are both included for each of our applications.
* One year limited warranty.

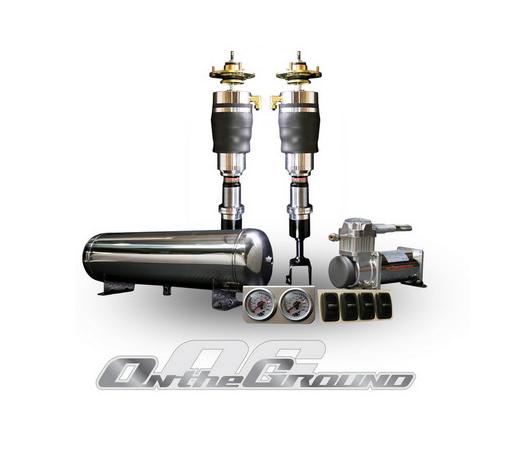

Kit Contents:
# (2) Front OG Struts
# (2) Rear OG Struts
# (1) 2-Gauge 4-Switch Manual Paddle
# (1) Tank (Standard or Pancake)
# (1) 380C VIAIR Chrome Compressor
# (1) Pressure Switch
ACC hybrid technology fuses coilover and air bag technology into one sleek package. The On the Ground system allows you to obtain the optimum performance and ride comfort for your vehicle. The damper “sweet spot” is obtained by adjusting the locking collars and positioning the shock piston in into its optimum position.
The theory of “On the Ground” is to allow the user to precisely tune the ride height and the bag pressure to suit their driving preference. By keeping the bag pressure at a given pressure rating, you can maintain the associated spring rate. From there, you can adjust your ride height by using the threaded collars (maximum adjustment is 50mm). By maintaining the shock/strut height, it will be in the optimum working position known as the “sweet spot.”
The suspension can be adjusted with precision through the use of the locking collars which allows you to “fine tune” the ride to your liking. Air Runner “Maximum Drop” technology allows the lowest possible vehicle height.
Features:
* Engineered to be installed in a bolt-on fashion.
* 4-wheel independent switches allow the suspension to be fine-turned to your performance needs especially while cornering when roll generated by air flow can resistant.
* The stainless steel braided leader hose has excellent flexibility and comes with a buit-in check valve to prevent back flow to the air tank.
* A schrader inflation valve allows for a quick fill up of your air tank during an emergency situation.
* Air Runner 380C Viair compressors have excellent durability for long-term service.
* Choose from a 4-gallon stainless steel tank or 4-gallon pancake tank.
* Pressure switches are pre selected for each of our applications.
* Unique “W-Lock” fittings squeeze the air line from both the inside and outside to prevent air leaks.
* Each kit includes 100ft D.O.T. approved 1/4″ air line and other meticulously selected components.
* Operation manuals and installation manuals are both included for each of our applications.
* One year limited warranty.
Kit Contents:
# (2) Front OG Struts
# (2) Rear OG Struts
# (1) 2-Gauge 4-Switch Manual Paddle
# (1) Tank (Standard or Pancake)
# (1) 380C VIAIR Chrome Compressor
# (1) Pressure Switch
Air Runner is a Japanese manufacturer of premium air-adjustable suspension components for many of today's finest vehicles, and evolved from a small shop in Hyogo named Advanced Car Culture (ACC). Fast-forward many years, and the company is now one of the most respected names in the adjustable suspension industry with presence all around the world. Air Runner only uses the best parts available, and it builds its products to install easily and without major modification.
