Revolution Subaru Wrx/Sti 02-07
Part #: 10168100
$839.50
$797.52
For each
For each
Featured Videos
-
Video Description:Everything you need to know about exhaust systems is explained on this episode of Andy's Auto Sport TV! We explain what exactly a cat-back exhaust system is, we explain why buying an exhaust system is Step 1 for improving performance, and we give information about how to make a buying decision from all the brands we carry here at Andy's.
Fits On:
SUBARU WRX/STI 02-07
Description:

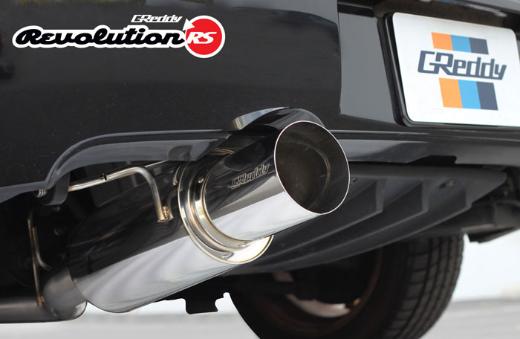

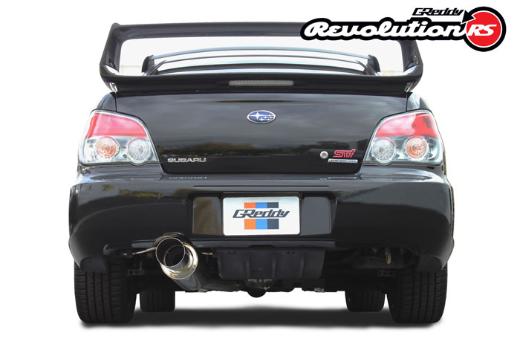

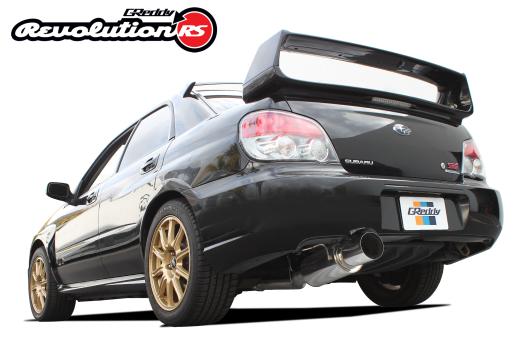

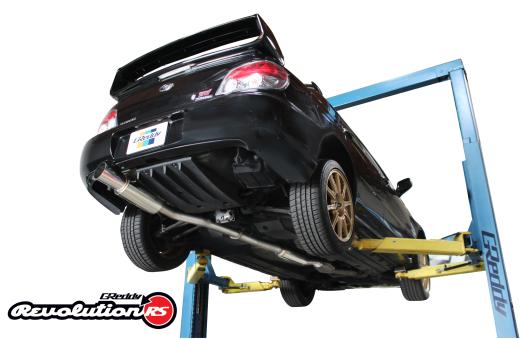

The Revolution RS for the GDB Subaru WRX/STI features a full non-tapered 76mm (3â) diameter piping. The focused layout of the cat-back exhaust uses minimal bends to produces a cost-effective, light-weight system that saves 8lbs over the stock system. Traditional GReddy RS styling positions a large resonator and the muffler and tip fashionably underneath the vehicle, while enhancing the profile body-lines perfectly. Dyno test have shown increase in 8hp and 6ft-lbs of torque on a completely stock vehicle, with the potential for additional gains with other aftermarket modifications and/or tuning. Like all GReddy Revolution RS systems, the exhaust is made from fully hand-welded 304 Stainless-Steel and carries a Limited Lifetime Warranty.
Chassis: GDB
Engine: EJ20 / EJ25
Type: Cat-back system
Number of pieces: 2pcs
Piping: 76 mm ( 3.0 in.)
Tip: 115 mm (4.5 ") x L 170mm (6.7")
Gasket(s): 3.0" oval (qty: 1 included) replacement
Resonator: Yes
Weight: 24.2 lbs (Stock weight 32.1 lbs)
Sound level: 102 dB(a)
HP: +8.33 hp
TRQ: +6.38 ft-lbs
The Revolution RS for the GDB Subaru WRX/STI features a full non-tapered 76mm (3â) diameter piping. The focused layout of the cat-back exhaust uses minimal bends to produces a cost-effective, light-weight system that saves 8lbs over the stock system. Traditional GReddy RS styling positions a large resonator and the muffler and tip fashionably underneath the vehicle, while enhancing the profile body-lines perfectly. Dyno test have shown increase in 8hp and 6ft-lbs of torque on a completely stock vehicle, with the potential for additional gains with other aftermarket modifications and/or tuning. Like all GReddy Revolution RS systems, the exhaust is made from fully hand-welded 304 Stainless-Steel and carries a Limited Lifetime Warranty.
Chassis: GDB
Engine: EJ20 / EJ25
Type: Cat-back system
Number of pieces: 2pcs
Piping: 76 mm ( 3.0 in.)
Tip: 115 mm (4.5 ") x L 170mm (6.7")
Gasket(s): 3.0" oval (qty: 1 included) replacement
Resonator: Yes
Weight: 24.2 lbs (Stock weight 32.1 lbs)
Sound level: 102 dB(a)
HP: +8.33 hp
TRQ: +6.38 ft-lbs
GReddy Exhaust Systems are some of the finest performance exhausts available today. All GReddy exhaust systems (SP2, MX, EVO2, & G2) are complete cat-back exhaust systems, which do not affect emissions related hardware.
Q: What does an ehaust system do? Why buy an exhaust system?
A: A performance exhaust system is used to increase horsepower for your car by allowing exhaust gases to pass through your exhaust system with less backpressure and less resistance. Larger-diameter piping is normally used, depending on the application, in order to gain more horsepower and torque levels throughout the power band. A performance exhaust system can be the most cost-effective modification you can do to get more horsepower out of your car, not to mention that it will give your car a deeper more aggressive sound. And depending on the brand, performance exhaust systems normally include gorgeous new mufflers that add a great appearance to your car.
Q: Does a cat-back exhaust come with a catalytic converter?
A: No, "cat-back" actually means from the rear of the catalytic converter back, so it will include everything after the converter, but not the converter itself.
Q: What exactly does "cat-back" mean when people say "cat-back exhaust"?
A: Many performance exhaust systems are also referred to as cat-back exhausts. Cat-back means that the exhaust piping starts from your catalytic converter and runs back all the way to the exhaust tip(s).
Q: How do you install an exhaust system?
A: Exhaust systems are installed using the supplied hardware, which includes gaskets and high grade bolts. This is truly a bolt-on procedure and most exhaust systems are an exact fit with no modifications needed. For this reason, getting a performance exhaust system is normally considered one of the easiest ways to gain noticeable horsepower for your car.
A: A performance exhaust system is used to increase horsepower for your car by allowing exhaust gases to pass through your exhaust system with less backpressure and less resistance. Larger-diameter piping is normally used, depending on the application, in order to gain more horsepower and torque levels throughout the power band. A performance exhaust system can be the most cost-effective modification you can do to get more horsepower out of your car, not to mention that it will give your car a deeper more aggressive sound. And depending on the brand, performance exhaust systems normally include gorgeous new mufflers that add a great appearance to your car.
Q: Does a cat-back exhaust come with a catalytic converter?
A: No, "cat-back" actually means from the rear of the catalytic converter back, so it will include everything after the converter, but not the converter itself.
Q: What exactly does "cat-back" mean when people say "cat-back exhaust"?
A: Many performance exhaust systems are also referred to as cat-back exhausts. Cat-back means that the exhaust piping starts from your catalytic converter and runs back all the way to the exhaust tip(s).
Q: How do you install an exhaust system?
A: Exhaust systems are installed using the supplied hardware, which includes gaskets and high grade bolts. This is truly a bolt-on procedure and most exhaust systems are an exact fit with no modifications needed. For this reason, getting a performance exhaust system is normally considered one of the easiest ways to gain noticeable horsepower for your car.
