Synapse Synchronic Diverter Valve With Charge Pipe Kit
Part #: DV001A.014
$612.38
$398.05
For kit
For kit
Free Shipping! *to continental U.S. only
Featured Videos
-
Video Description:This video shows the interview we had with Synapse at SEMA. These guys make truly unique turbo-charging products, and in the interview we cover some of the things that makes Synapse special!
-
Video Description:In this video, we'll show you how recirculating valves and blow off valves are similar, and how they're different. Highlights include:
*At 0:16, we tell you the functions of each, as well as the pros and cons of each type of valve.
Fits On:
11-14 Nissan Juke 1.6l Turbo
Description:

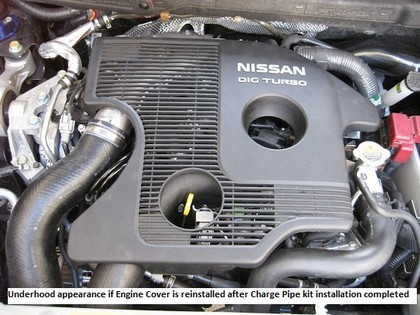

The Synapse Engineering Charge Pipe kit is designed to eliminate unnecessary air flow restrictions before the throttle body. The light weight 6061 aluminum mandrel bent charge pipe provides a secure mount for the OE Intake Air Temperature sensor. This DV Charge Pipe kit is a “plug & play” kit that mates with all factory equipped components.

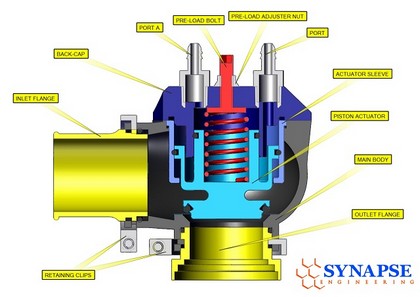

The Synchronic DV is a compact, zero-diaphragm, high-flow Diverter Valve actuating within 25 milliseconds. The DV body is near-net, investment cast, aerospace-grade Aluminum followed by CNC machining of all components including the forged 6061 actuator assembly. Each DV unit is tested to withstand 60 psi to ensure no boost leak.
Key Features:
• Patented Synchronic actuator design in DV for unmatched fast actuation
• Charge Pipe installation is secure mounted on OE mounting locations
• Powder-coated black Charge Pipe to preserve the OE look and feel
• Secure mount with aluminum IAT sensor welded onto Charge Pipe
• Synapse Boost Connect™ One-Touch pneumatic fittings for installation ease
The Synapse Engineering Charge Pipe kit is designed to eliminate unnecessary air flow restrictions before the throttle body. The light weight 6061 aluminum mandrel bent charge pipe provides a secure mount for the OE Intake Air Temperature sensor. This DV Charge Pipe kit is a “plug & play” kit that mates with all factory equipped components.
The Synchronic DV is a compact, zero-diaphragm, high-flow Diverter Valve actuating within 25 milliseconds. The DV body is near-net, investment cast, aerospace-grade Aluminum followed by CNC machining of all components including the forged 6061 actuator assembly. Each DV unit is tested to withstand 60 psi to ensure no boost leak.
Key Features:
• Patented Synchronic actuator design in DV for unmatched fast actuation
• Charge Pipe installation is secure mounted on OE mounting locations
• Powder-coated black Charge Pipe to preserve the OE look and feel
• Secure mount with aluminum IAT sensor welded onto Charge Pipe
• Synapse Boost Connect™ One-Touch pneumatic fittings for installation ease
Synapse Engineering is a performance shop based out of San Diego, California since 1999. Their fields of expertise deals in bypass valves, wastegates, intercoolers, turbocharger piping and accessories.
Synapse has been reinventing pneumatic actuators for flutter dump, compressor surge – issues which plague high-boost turbo setups – with a new technology called "Synchronic". Their products are low-maintenance, bolt-on performance pieces that are designed for easy installation – they supply couplers with matching t-bolt clamps, for instance.
Their Synchronic technology basically redesigns the geometry of a fluid-powered actuator, resulting in improved response and reduced frictional losses. Synapse Engineering takes time and effort with their build and R & D processes and the results speak for themselves.
Synapse has been reinventing pneumatic actuators for flutter dump, compressor surge – issues which plague high-boost turbo setups – with a new technology called "Synchronic". Their products are low-maintenance, bolt-on performance pieces that are designed for easy installation – they supply couplers with matching t-bolt clamps, for instance.
Their Synchronic technology basically redesigns the geometry of a fluid-powered actuator, resulting in improved response and reduced frictional losses. Synapse Engineering takes time and effort with their build and R & D processes and the results speak for themselves.
