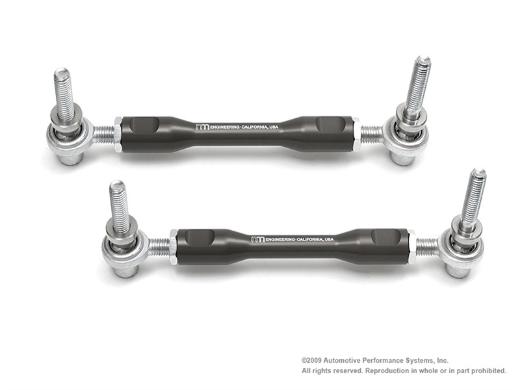

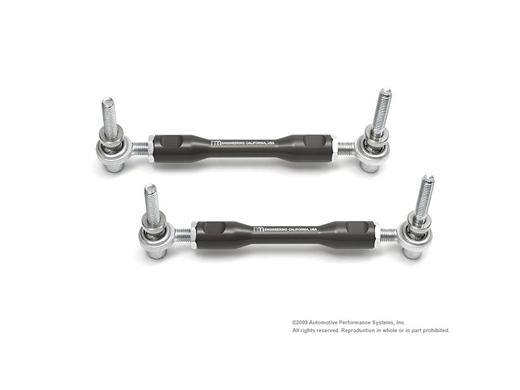

Neuspeed Rear Sway Bar Link
Part #: NM.328856
$198.50 For each
Free Shipping! *to continental U.S. only
Fits On:
• R50 Mini Cooper, • R52/R53 Mini Cooper JCW, • R52/R53 Mini Cooper S, • R55 Mini Cooper Clubman, • R55 Mini Cooper JCW Clubma... See more
Description:
NM Engineering’s new Rear Adjustable Sway Bar Links provides three benefits:
• Direct transmission of suspension movements to the sway bar
• On lowered vehicles, allows repositioning of sway bar to neutral position
• Can eliminate sway bar pre-loading to compensate for poorly manufactured sway bars
Everything starts with the material – after all, it is the foundation of the part. NM Engineering did not skimp here as these links are precision Computer Numerical Control (CNC) machined from 7075-T6 aluminum here in California. Because this is a high-stress part, 7075 was chosen because it has the same tensile strength as steel, yet is much lighter. Just to compare, 7075-T6 has almost twice the tensile strength compared to 6061-T6.
Another benefit afforded by 7075-T6 is it allowed NM Engineering to machine or turn-down the centers of the links to save weight and stay clear to other elements such as brake lines and brake pad sensor wires.

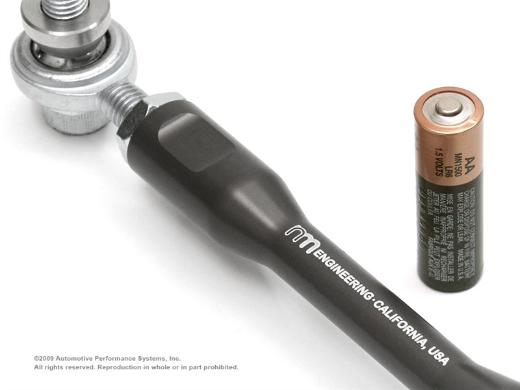

Another benefit afforded by 7075-T6 is it allowed NM Engineering to machine or turn-down the centers of the links to save weight and stay clear of the brake lines and brake pad sensor wires. To give you an idea how thin the link is, the centers of the NM links are thinner than a standard AA battery.
NM’s links also utilize precision Computer Numerical Control (CNC) machined stainless steel ball-joint spacers as stainless steel is stronger and more durable than 6061 aluminum alloy. To maximize adjustability, NM chose a special thin jam nut which allow an additional ¼"" of adjustment compared to others being sold in the market.
The length of front and rear links are compensated for lowered vehicles so the sway bar arms will sit in a neutral position relative to the swing arm. The length of the rear links are 25mm shorter and the fronts are 12mm longer compared to OE links. This is also ’the’ solution for enthusiasts out there with coil-over suspension that lower the ride height more than 1.5"".
By the way, a quick note on the materials we use…whether it is 6061-T6 or 7075-T6, all grade materials we purchase are certified. We will NEVER buy uncertified scrap or overrun materials from metal/alloy vendors. NM Engineering’s Rear Adjustable Sway Bar Links will not yield like their OE counterparts making sure that all suspension movements are transmitted to the sway bar for maximum performance. This part is a must especially on lowered vehicles or cars equipped with aftermarket sway bars.
Notes:
Finish : Type III Hard Anodize
NM Engineering’s new Rear Adjustable Sway Bar Links provides three benefits:
• Direct transmission of suspension movements to the sway bar
• On lowered vehicles, allows repositioning of sway bar to neutral position
• Can eliminate sway bar pre-loading to compensate for poorly manufactured sway bars
Everything starts with the material – after all, it is the foundation of the part. NM Engineering did not skimp here as these links are precision Computer Numerical Control (CNC) machined from 7075-T6 aluminum here in California. Because this is a high-stress part, 7075 was chosen because it has the same tensile strength as steel, yet is much lighter. Just to compare, 7075-T6 has almost twice the tensile strength compared to 6061-T6.
Another benefit afforded by 7075-T6 is it allowed NM Engineering to machine or turn-down the centers of the links to save weight and stay clear to other elements such as brake lines and brake pad sensor wires.
Another benefit afforded by 7075-T6 is it allowed NM Engineering to machine or turn-down the centers of the links to save weight and stay clear of the brake lines and brake pad sensor wires. To give you an idea how thin the link is, the centers of the NM links are thinner than a standard AA battery.
NM’s links also utilize precision Computer Numerical Control (CNC) machined stainless steel ball-joint spacers as stainless steel is stronger and more durable than 6061 aluminum alloy. To maximize adjustability, NM chose a special thin jam nut which allow an additional ¼"" of adjustment compared to others being sold in the market.
The length of front and rear links are compensated for lowered vehicles so the sway bar arms will sit in a neutral position relative to the swing arm. The length of the rear links are 25mm shorter and the fronts are 12mm longer compared to OE links. This is also ’the’ solution for enthusiasts out there with coil-over suspension that lower the ride height more than 1.5"".
By the way, a quick note on the materials we use…whether it is 6061-T6 or 7075-T6, all grade materials we purchase are certified. We will NEVER buy uncertified scrap or overrun materials from metal/alloy vendors. NM Engineering’s Rear Adjustable Sway Bar Links will not yield like their OE counterparts making sure that all suspension movements are transmitted to the sway bar for maximum performance. This part is a must especially on lowered vehicles or cars equipped with aftermarket sway bars.
Notes:
Finish : Type III Hard Anodize
With smooth mandrel bends, aerospace-quality steel, machined ends, polyurethane bushings and much more, Neuspeed sway bars give you the ultimate in handling. Neuspeed sway bars reduce body roll without sacrificing ride comfort during straight line cruising.
Bill Neumann is the founder of Neuspeed, which is headquartered in Camarillo, California. Neuspeed is an iconic company among euro tuners and import tuners since Neuspeed specifically caters their careful product design to those vehicles.
Bill Neumann is the founder of Neuspeed, which is headquartered in Camarillo, California. Neuspeed is an iconic company among euro tuners and import tuners since Neuspeed specifically caters their careful product design to those vehicles.
Q: What are sway bars? Why buy a sway bar?
A: Sway bars give your car additional stability. A sway bar is a metal bar that spans the whole entire axle and joins each side of your suspension together. Aftermarket sway bars they are usually thicker than factory ones, which means they will create a more level ride, reducing body roll and under steer. With a new sway bar, you can accelerate into turns instead of braking through them.
Q: Are sway bars available for the front and rear of each vehicle?
A: One sway bar is used to tie the front suspension together, and one is used to tie the rear suspension together, so for maximum suspension upgrade, you could buy a front and rear sway bar. When available, they are often sold in complete sets that include the front and the rear.
Q: How do you install a sway bar?
A: Sway bars are installed by removing your factory end links and sway bar. Re-install the new bushings and position your new sway bar on the vehicle in the OEM location and secure it with the same bolts.
Q: Is an anti-sway bar the same as a sway bar?
A: Anti-sway bar and sway bar are two terms that mean exactly the same thing.
A: Sway bars give your car additional stability. A sway bar is a metal bar that spans the whole entire axle and joins each side of your suspension together. Aftermarket sway bars they are usually thicker than factory ones, which means they will create a more level ride, reducing body roll and under steer. With a new sway bar, you can accelerate into turns instead of braking through them.
Q: Are sway bars available for the front and rear of each vehicle?
A: One sway bar is used to tie the front suspension together, and one is used to tie the rear suspension together, so for maximum suspension upgrade, you could buy a front and rear sway bar. When available, they are often sold in complete sets that include the front and the rear.
Q: How do you install a sway bar?
A: Sway bars are installed by removing your factory end links and sway bar. Re-install the new bushings and position your new sway bar on the vehicle in the OEM location and secure it with the same bolts.
Q: Is an anti-sway bar the same as a sway bar?
A: Anti-sway bar and sway bar are two terms that mean exactly the same thing.
