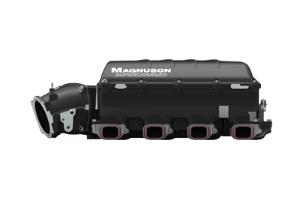

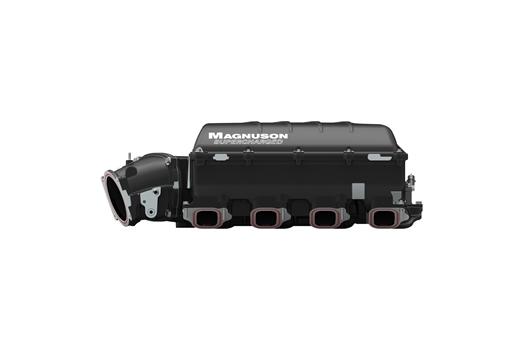

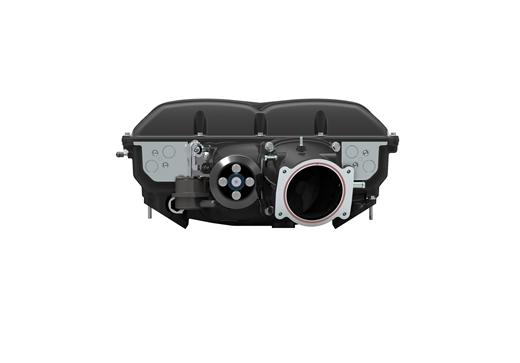

Magnuson TVS2300 Heartbeat Supercharger System (No Intercooler/No Calibration)
Part #: 05-00-23-379-BL
$6,323.51 For each
Featured Videos
-
Video Description:Magnuson Supercharged 2016+ Camaro SS
-
Video Description:Boosting your vehicle is a major expense, so make sure you protect your investment correctly by checking out this video about forced induction and fuel usage. In this video:
*At 0:22, we tell you about what fuel supercharger manufacturers recommend you use and why. -
Video Description:Having the right spark plugs in forced induction applications is important, and in this video we'll tell you why. Highlights include:
*At 0:20, we explain why the right spark plugs and plug gap make a difference.
*At 0:58, we give our recommendations for choosing the proper spark plug gap for turbo and supercharged applications. -
Video Description:In this video, we tell you if it's okay to add forced induction (turbo or supercharger) to your otherwise stock engine. Highlights include:
*At 0:17, we tell you how to determine if your engine is ready for boost.
*At 0:30, we tell you how buying quality forced induction parts will help protect your engine.
*At 0:50, we talk about tuning your vehicle for power and reliability.
Fits On:
2016+ Chevrolet Camaro SS LT1 6.2L V8
Description:
Boost the power output of your 2016+ Chevrolet Camaro SS 6.2L LT1 while retaining factory-like drivability, fuel economy, and reliability with Magnuson's TVS2300 Supercharger Kit.
This Non Intercooled / No Calibration (no handheld provided) will deliver tire shredding power of 505+ horsepower and 460+ foot-pounds of torque at the rear wheels and beyond! Besides peak horsepower and torque this supercharger offers significantly enhanced "under the curve" power gains delivering near instantaneous boost and torque upon demand that really puts you back in your seat. The entry level system allows you to upgrade later with our intercooler system at any time!
Maximizing your efficiency during cruising is the job of the supercharger's integrated bypass valve. This vacuum operated system allows air to bypass the supercharger and the rotors to "free-spin" under light engine loads. During this situation the parasitic loss of the supercharger system is essentially negated taking less than one-third of a horsepower to turn the rotors. This bypass valve also allows your supercharged Camaro SS to maintain stock-like drivability and fuel economy - giving you a package that delivers power without compromise.
Down to the smallest part, the Magnuson Supercharger line of bolt-on supercharger systems are engineered as a complete package. The supercharger, supercharger intake manifold, inlet, pulley, and charge air coolers come pre-assembled to make installation simple and easy while the accessory box is organized into individual sub-assemblies to help ensure that you don't lose track of parts during your install. All of the hardware needed for a full and complete install is also included so you won't be running to the local parts store in the middle of your installation. In addition, the full color, step-by-step Installation Manuals will walk you through the install process with exacting attention to detail.
Magnuson's TVS2300 supercharger utilizes EATON's latest 6th Generation supercharger rotor technology found in such industry leading performance vehicles as the Corvette ZR-1, the Cadillac CTS-V, and the 2013 Mustang GT500. These Twin Vortices Series Superchargers feature a pair of four-lobe, high-helix rotors with 160-degrees of overall twist that are housed in Magnuson's patented high-flow housing. This highly efficient package requires less power to drive, delivers cooler discharge temperatures, and is much quieter than many of its competitors. These superchargers are all manufactured in our TS16949 certified facility the highest ISO OEM quality certification standard in the market. Backed by a 3-year/36,000 mile warranty this supercharger is built to last. Designed to be nearly maintenance free so you won't have to worry about anything once it is installed.
Features
Non Intercooled / No Calibration (no handheld provided)
TVS2300 Heartbeat Hybrid-roots supercharger
Clears the factory Camaro hood and requires no body modifications
TVS2300 Front-Inlet Front-Drive rotors, utilizes the same Eaton technology as the Corvette ZR1 LS9
Provides cooler discharge temperatures than comparable twin-screw systems
Advanced high-flow inlet forward design
Acoustically designed to minimize noise, vibration, and harshness (NVH)
Better air-handling characteristics than comparable superchargers
100% complete bolt-on system which can be installed in one day
More power in a smaller package
Internal Bypass Valve virtually eliminates parasitic loss (uses less than 1/3 of a horsepower at 60 mph)
Delivers a proven increase in real world "under the curve" power
High thermal efficiency
2.4 pressure ratio capability
High helix four-lobe rotors with 160 degrees of twist
Redesigned inlet and outlet ports
Utilizes all factory "push-lock" connectors
Displacement on demand hardware retained for improved fuel economy
Components have been independently tested to GM's specification
Included Components
6th Generation TVS2300 Heartbeat Supercharger with integral bypass valve
Patented cast-aluminum high-velocity-port intake manifold
Large front-mounted heat exchanger
All necessary fittings, lines, belts, and hardware required
Warranty
Supercharger - 3 Year / 36,000 Mile Limited Warranty on supercharger hardware
Electronics - 1 Year Limited Warranty on electrical components
Maintenance
Sealed supercharger rotor assembly requires no maintenance or oil change
Emissions Status
CARB E.O.# N/A (Tuner Kit)
Tools Required
Metric wrench set
1/4in. - 3/8in. and 1/2in. drive metric socket set (Standard and Deep)
3/8in.and 1/2in. drive foot-pound and inch-pound torque wrenches
Belt tensioner wrench
Phillips and flat-head screwdrivers
1/2in. breaker bar
Fuel line quick disconnect tool (included in kit)
Small or angled 3/8in. drill
Drain pan
Hose cutters
Hose clamp pliers
Safety glasses
Torque angle meter
Hammer
Compressed air
Blow gun air tool
Metric Allen socket set 3/8in. drive
Shop vacuum cleaner
Blue Loctite
Right Angle drill for pinning crank pulley (when required)
Helpful Tool: Air or electric impact wrench
Average Installation Time
10-12 Hours
Size and Weight
Number of Boxes: 2
Box 1 Size: 34"x20"x16"
Box 1 Weight: 85 lbs.
Box 2 Size: 27"x14"x18"
Box 2 Weight: 40 lbs.
Boost the power output of your 2016+ Chevrolet Camaro SS 6.2L LT1 while retaining factory-like drivability, fuel economy, and reliability with Magnuson's TVS2300 Supercharger Kit.
This Non Intercooled / No Calibration (no handheld provided) will deliver tire shredding power of 505+ horsepower and 460+ foot-pounds of torque at the rear wheels and beyond! Besides peak horsepower and torque this supercharger offers significantly enhanced "under the curve" power gains delivering near instantaneous boost and torque upon demand that really puts you back in your seat. The entry level system allows you to upgrade later with our intercooler system at any time!
Maximizing your efficiency during cruising is the job of the supercharger's integrated bypass valve. This vacuum operated system allows air to bypass the supercharger and the rotors to "free-spin" under light engine loads. During this situation the parasitic loss of the supercharger system is essentially negated taking less than one-third of a horsepower to turn the rotors. This bypass valve also allows your supercharged Camaro SS to maintain stock-like drivability and fuel economy - giving you a package that delivers power without compromise.
Down to the smallest part, the Magnuson Supercharger line of bolt-on supercharger systems are engineered as a complete package. The supercharger, supercharger intake manifold, inlet, pulley, and charge air coolers come pre-assembled to make installation simple and easy while the accessory box is organized into individual sub-assemblies to help ensure that you don't lose track of parts during your install. All of the hardware needed for a full and complete install is also included so you won't be running to the local parts store in the middle of your installation. In addition, the full color, step-by-step Installation Manuals will walk you through the install process with exacting attention to detail.
Magnuson's TVS2300 supercharger utilizes EATON's latest 6th Generation supercharger rotor technology found in such industry leading performance vehicles as the Corvette ZR-1, the Cadillac CTS-V, and the 2013 Mustang GT500. These Twin Vortices Series Superchargers feature a pair of four-lobe, high-helix rotors with 160-degrees of overall twist that are housed in Magnuson's patented high-flow housing. This highly efficient package requires less power to drive, delivers cooler discharge temperatures, and is much quieter than many of its competitors. These superchargers are all manufactured in our TS16949 certified facility the highest ISO OEM quality certification standard in the market. Backed by a 3-year/36,000 mile warranty this supercharger is built to last. Designed to be nearly maintenance free so you won't have to worry about anything once it is installed.
Features
Non Intercooled / No Calibration (no handheld provided)
TVS2300 Heartbeat Hybrid-roots supercharger
Clears the factory Camaro hood and requires no body modifications
TVS2300 Front-Inlet Front-Drive rotors, utilizes the same Eaton technology as the Corvette ZR1 LS9
Provides cooler discharge temperatures than comparable twin-screw systems
Advanced high-flow inlet forward design
Acoustically designed to minimize noise, vibration, and harshness (NVH)
Better air-handling characteristics than comparable superchargers
100% complete bolt-on system which can be installed in one day
More power in a smaller package
Internal Bypass Valve virtually eliminates parasitic loss (uses less than 1/3 of a horsepower at 60 mph)
Delivers a proven increase in real world "under the curve" power
High thermal efficiency
2.4 pressure ratio capability
High helix four-lobe rotors with 160 degrees of twist
Redesigned inlet and outlet ports
Utilizes all factory "push-lock" connectors
Displacement on demand hardware retained for improved fuel economy
Components have been independently tested to GM's specification
Included Components
6th Generation TVS2300 Heartbeat Supercharger with integral bypass valve
Patented cast-aluminum high-velocity-port intake manifold
Large front-mounted heat exchanger
All necessary fittings, lines, belts, and hardware required
Warranty
Supercharger - 3 Year / 36,000 Mile Limited Warranty on supercharger hardware
Electronics - 1 Year Limited Warranty on electrical components
Maintenance
Sealed supercharger rotor assembly requires no maintenance or oil change
Emissions Status
CARB E.O.# N/A (Tuner Kit)
Tools Required
Metric wrench set
1/4in. - 3/8in. and 1/2in. drive metric socket set (Standard and Deep)
3/8in.and 1/2in. drive foot-pound and inch-pound torque wrenches
Belt tensioner wrench
Phillips and flat-head screwdrivers
1/2in. breaker bar
Fuel line quick disconnect tool (included in kit)
Small or angled 3/8in. drill
Drain pan
Hose cutters
Hose clamp pliers
Safety glasses
Torque angle meter
Hammer
Compressed air
Blow gun air tool
Metric Allen socket set 3/8in. drive
Shop vacuum cleaner
Blue Loctite
Right Angle drill for pinning crank pulley (when required)
Helpful Tool: Air or electric impact wrench
Average Installation Time
10-12 Hours
Size and Weight
Number of Boxes: 2
Box 1 Size: 34"x20"x16"
Box 1 Weight: 85 lbs.
Box 2 Size: 27"x14"x18"
Box 2 Weight: 40 lbs.
Magnuson's Research and Development team embody over 60 years of industry experience, using the state-of-the-art engineering and the latest in computer design and fabrication technology to deliver some of the highest-quality performance products out there. Magnuson, unlike many of their contemporaries, focuses on building their superchargers to OEM specs, meaning that your car, with the addition of a supercharger, will retain its stock reliability, emissions and fuel efficiency. With decades of experience, a premium placed on customer service, and sophisticated engineering, the roots-style superchargers from Magnuson are a great way to get your muscle-car up and running!
