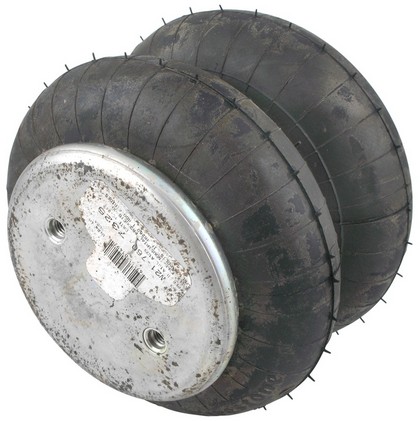

Firestone Ride-Rite Air Spring

07-11 Ram 4500, 5500, Requires 2" Clearance Above Frame

Description:
This standard Firestone air spring offers maximum load support and operates at up to 100 psi. The spring has a 1/4" inflation port, a ride height between 7" and 8" and a maximum diameter of 8.60".

Features:
Replacement air spring for Firestone Ride-Rite kits F2404 and F2442
Standard, double-convoluted air helper spring
Offers maximum load support
Provides cushioning between opposing components
Enhances performance and ride comfort on vehicles
Operates at up to 100 psi
4-Layer reinforcement construction
Enhances air spring load support
Braided wire girdle hoop creates convoluted shape
Increases burst pressure of spring
Environmentally friendly, coated metal end plates
Provide superior corrosion resistance
Machined, welded, 1/4" NPT air intake hole
Time-proven, rolled crimp seal
Keeps rubber air bag secured to end plates

Specs:
Quantity: 1 air spring
Replacement air spring for Firestone Ride-Rite kits F2404 and F2442

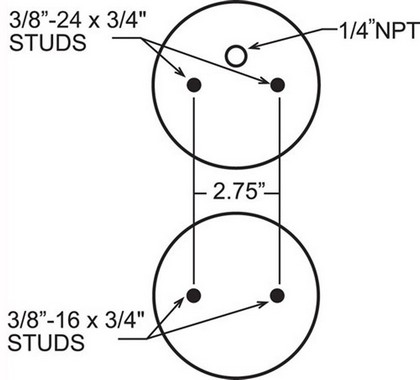

Inflation port: 1/4" NPT
Compressed height: 3"
Extended height: 9"
Ride height: 7" to 8"
Maximum diameter: 8.60"
PSI: Up to 100
Limited lifetime warranty
