COBB Tuning - Mitsubishi Upper Hard Pipe Kit For Evo X
Part #: 752530-BK
$435.00 For each
Free Shipping! *to continental U.S. only
Fits On:
2008-2015 Mitsubishi Evolution
Description:
COBB Tuning - Mitsubishi Upper Hard Pipe Kit for Evo X
This part is legal for sale and use on Emissions Controlled Vehicles in all 50 states when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number: D-660-111

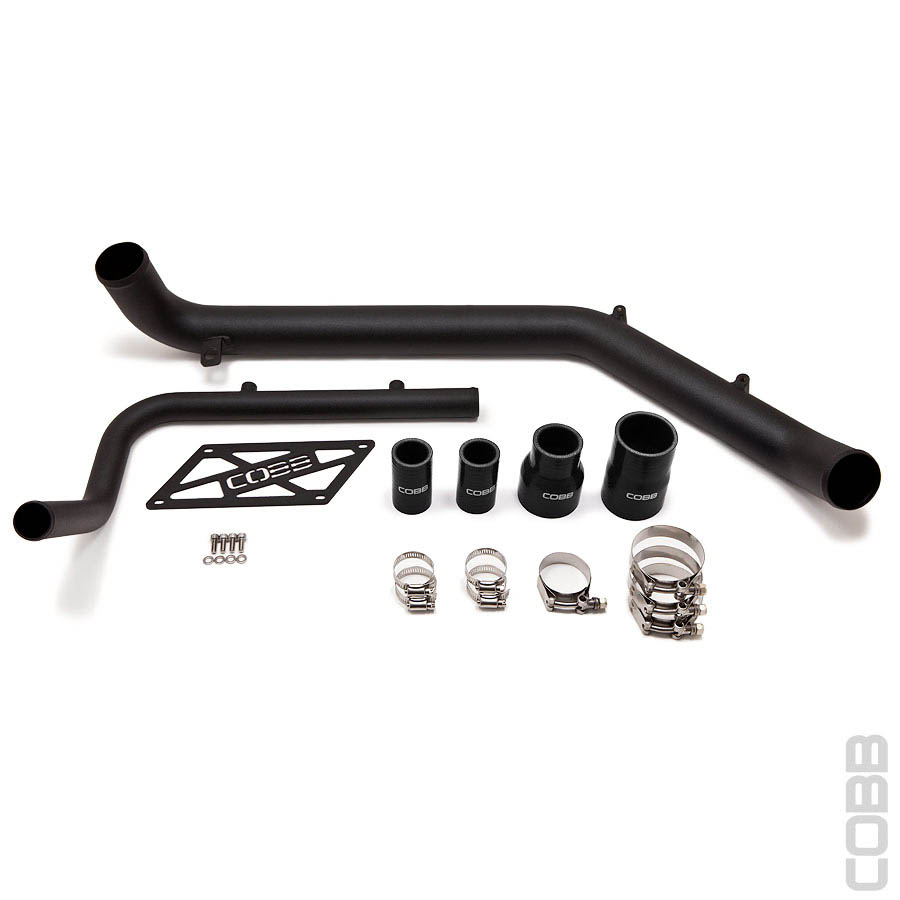

As with all intercooler hard-pipe kits, the stock rubber hoses to the intercooler are replaced with solid pipes to eliminate distortion under boost. But the devil is in the details, and that is where similarities end. The COBB EVO X Intercooler Upper Hard-Pipe Kit consists of single piece pipes made from mandrel bent aluminum tubing. The results are weld-free pipes from the turbo outlet to intercooler inlet without unsightly mid-pipe silicone hose couplings that can disrupt flow or potentially blow off under boost. The pipe diameter has increased from the stock 2.375 inch to 2.5 inch, enhancing flow even further. The By-Pass-Valve (BPV) gets its own hard-pipe from the cold side of the intercooler, maintaining the factory location and orientation. Retaining this connection from the cold side ensures that cool air is fed back to the intake system when the valve is in bypass mode, preventing overheating of the air-charge post turbo. The BPV is located using a unique COBB logo bridge that connects the BPV hard-pipe to the hot side hard-pipe. The COBB EVO X Intercooler Upper Hard-Pipe kit is one of the very few that will fit with the factory air box in place (or the optional COBB SF Intake) as well as the stock front engine cover. The kit is completed with high quality COBB silicone hose couplings and heavy duty T-Bolt hose clamps to eliminate those embarrassing hose blow-offs than can occur when demanding the most from your EVO X.
COBB Tuning - Mitsubishi Upper Hard Pipe Kit for Evo X
This part is legal for sale and use on Emissions Controlled Vehicles in all 50 states when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number: D-660-111
As with all intercooler hard-pipe kits, the stock rubber hoses to the intercooler are replaced with solid pipes to eliminate distortion under boost. But the devil is in the details, and that is where similarities end. The COBB EVO X Intercooler Upper Hard-Pipe Kit consists of single piece pipes made from mandrel bent aluminum tubing. The results are weld-free pipes from the turbo outlet to intercooler inlet without unsightly mid-pipe silicone hose couplings that can disrupt flow or potentially blow off under boost. The pipe diameter has increased from the stock 2.375 inch to 2.5 inch, enhancing flow even further. The By-Pass-Valve (BPV) gets its own hard-pipe from the cold side of the intercooler, maintaining the factory location and orientation. Retaining this connection from the cold side ensures that cool air is fed back to the intake system when the valve is in bypass mode, preventing overheating of the air-charge post turbo. The BPV is located using a unique COBB logo bridge that connects the BPV hard-pipe to the hot side hard-pipe. The COBB EVO X Intercooler Upper Hard-Pipe kit is one of the very few that will fit with the factory air box in place (or the optional COBB SF Intake) as well as the stock front engine cover. The kit is completed with high quality COBB silicone hose couplings and heavy duty T-Bolt hose clamps to eliminate those embarrassing hose blow-offs than can occur when demanding the most from your EVO X.
Q: What are intercooler pipes? Why buy them? How do I know which intercooler pipes to buy?
A: Turbochargers put off a tremendous amount of heat, so in order to maximize power most turbocharged vehicles utilize intercoolers which are essentially radiators that cool off the intake charge. This cooler, denser air is capable of producing significantly more horsepower. In order to connect your intercooler to your engine a series of intercooler pipes are utilized. These pipes come in varying diameters and shapes to accommodate both factory and custom aftermarket intercooler setups. Intercooler pipes also come in both hard (aluminum) and soft (silicone) forms allowing for added strength or flexibility where needed.
Choosing the appropriate intercooler pipes for your setup can be a tricky proposition. The first thing you will want to find out is what diameter pipe you require. You will want to measure both your intercooler inlet/outlet diameter and turbo outlet diameter and get pipes that line up with these measurements. There are couplers that allow you to step up or step down in size if necessary. Once you have established the diameter of the piping you will want to figure out if you need a complete set or just one or two individual pipes. For a custom setup you may have to buy each pipe individually to make the setup work, but if you are replacing a stock intercooler setup a full intercooler piping kit may do the job. Lastly you will want to make sure you have all the necessary flexible couplers and hose clamps to attach the pipes firmly and prevent boost leaks. Never assume that a generic intercooler piping kit will work for your vehicle, do some research first and order as necessary.
A: Turbochargers put off a tremendous amount of heat, so in order to maximize power most turbocharged vehicles utilize intercoolers which are essentially radiators that cool off the intake charge. This cooler, denser air is capable of producing significantly more horsepower. In order to connect your intercooler to your engine a series of intercooler pipes are utilized. These pipes come in varying diameters and shapes to accommodate both factory and custom aftermarket intercooler setups. Intercooler pipes also come in both hard (aluminum) and soft (silicone) forms allowing for added strength or flexibility where needed.
Choosing the appropriate intercooler pipes for your setup can be a tricky proposition. The first thing you will want to find out is what diameter pipe you require. You will want to measure both your intercooler inlet/outlet diameter and turbo outlet diameter and get pipes that line up with these measurements. There are couplers that allow you to step up or step down in size if necessary. Once you have established the diameter of the piping you will want to figure out if you need a complete set or just one or two individual pipes. For a custom setup you may have to buy each pipe individually to make the setup work, but if you are replacing a stock intercooler setup a full intercooler piping kit may do the job. Lastly you will want to make sure you have all the necessary flexible couplers and hose clamps to attach the pipes firmly and prevent boost leaks. Never assume that a generic intercooler piping kit will work for your vehicle, do some research first and order as necessary.
If you live in California, please note this item may be subject to a Proposition 65 warning. Click here to learn more.
