Brian Crower Stage 2 Normally Aspirated Camshafts (All Motor Street)

Part #: BC0061

$794.95 For pair

Free Shipping! *to continental U.S. only

No-Hassle Returns

Seeproduct details

Learnabout Brian Crower

Product Details

Fits On:

Honda F20C/F22C

Description:
Adv. Dur.:
310°/308°
250°/242°
238°/234°

Dur @ .050:
232°/228°
176°/174°
170°/168°

Lift (in):
.512"/.492"
.335"/.335"
.313"/.318"

Lift (mm):
13.00/12.50
8.50/8.50
7.95/8.08

Kit #: BC0040 or BC0040S

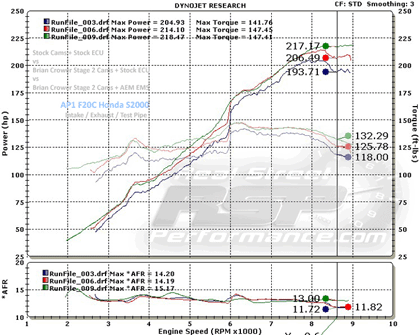

Drop in cams that deliver spirited driving without requiring a valve spring change. Delivers double digit HP gains without modifications.

The only Honda engine designed to sit longitudinally for the rear wheel drive S2000 (named for it's 1997cc displacement), this is Honda's answer to 4 cylinder high performance, high engine rpm (8900 rpm factory redline). Similar to the K Series engine in terms of mechanical roller cam profiles and roller rocker followers, the S2000 engine is used in a variety racing applications. The F20C engine is found in the 00-03 USDM S2000 and the 00-05 JDM S2000 while the F22C is used to service the 04-up USDM chassis and has just replaced the F20C in the 2006 JDM S2000. Similar in terms of compression and cam specifications, the F22C features a longer stroke for added displacement and increased torque.

WARNING: If running a late model cylinder head (after 2004), you may need to purchase BC2940 keepers to accommodate the BC2010 or BC2011 retainers. Honda changed the keeper groove angles, therefore your stock keepers/locks may not fit the BC retainers properly causing potential damage.

WARNING: Check rocker arm follower to cam lobe (mid lobe) clearance prior to operation. If rocker body/shrouding contacts lobe, clearance accordingly.

About Brian Crower

There are few companies in the modern motorsports industry as active and well-recognized as Brian Crower, Inc (people in the know just call it "BC"). The company has infused itself within the sport compact performance community, creating go-fast parts for some of the most popular engine platforms on the street or track. In fact, few companies can compare with Brian Crower's vast selection of engine components, making it the brand of choice for many performance auto enthusiasts.

FAQs

Q: How do you install camshafts?
A: Installation should be left to the pros on this one since timing will be involved. If you plan on doing it yourself removal of the upper timing belt cover will need to be done to reveal the cam gears. The valve cover along with the camshafts will need to be removed. Once this is done replace your factory camshafts the aftermarket camshafts and reinstall your cam gears. Make sure when you remove and reinstall the camshafts and cam gears they are at top dead center (TDC). Replace everything as you removed them and re-time your vehicle.

Q: Are camshafts sold individually?
A: Camshafts are sold individually unless otherwise noted in the product description. Single overhead cams (SOHC) utilize one camshaft while dual overhead cam (DOHC) motors utilize two.

Q: What do camshafts do? Why buy camshafts?
A: Air travels through your intake manifold into your intake valves and exhaust valves. By upgrading to more aggressive camshafts on both the intake and exhaust side, it will create greater duration and lift. This means the intake and exhaust valves can remain open longer, which allows for more air to move through the cylinder head efficiently. If you're looking to get more horsepower out of your car, aftermarket camshafts are a great option.
