Air Lift Performance Air Suspension - Performance Series
Part #: 78526+78626+27666
$2,650.00 For each
Free Shipping! *to continental U.S. only
Fits On:
13-17 Acura ILX, 12-13 Honda Civic & 12-13 Civic Si (9th Gen), fits USA/JDM Models, does not fit European Civics, 14-15 Honda ... See more
Description:
The latest generation of Honda Civic-now in its ninth iteration-has come a long way from its humble beginnings as a subcompact car from the 1970s. Used as economical transportation throughout the gas crunch, it was not until the 90s that the Civic was looked upon as a platform that could be modified...and then, the sport compact scene was born!
As with most vehicles that leave the factory, the suspension was designed to handle various trips to drop off the kids at school, and travel miles of highway while offering a smooth ride. While Air Lift agrees those are novel ideas for a suspension, but wouldn't you rather enjoy those same daily trips with a lower, cooler stance? Air Lift Performance has developed an air suspension kit that will allow you to lower your Civic without compromise. Not only will this suspension score you cool points at the show, but it is also tested and tuned for high-performance driving.

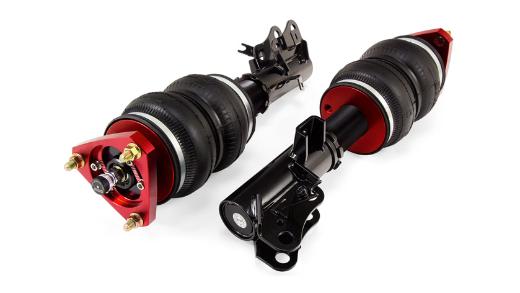

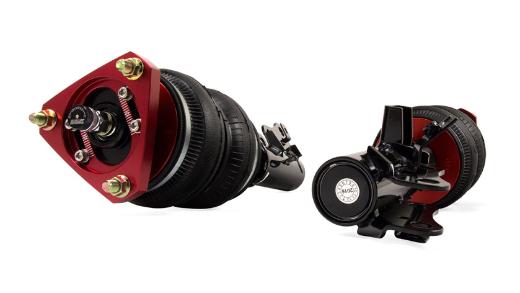

To start they swapped out the front OEM suspension for the smooth-riding, compact double-bellows air spring mated with a monotube threaded body strut. For a truly adjustable experience, the struts have 30 different levels of damping so you can go from racetrack stiff to super-smooth with the twist of the damping knob. Top all this off with adjustable camber plates carved out of T6061 aluminum and anodized in a deep red hue. As impressive as all this sounds, what is even more impressive is how your Civic will look sitting 4.48" lower than stock!

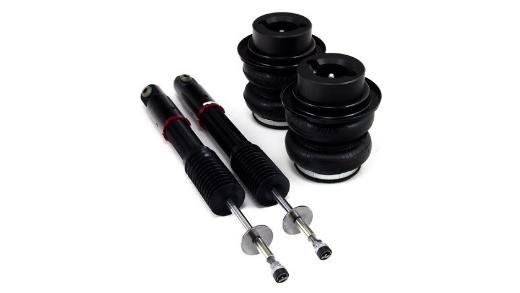

In the rear, they have replaced the coil spring with their double-bellows air spring to match the ride quality with the front. They also replace the shocks with their own 30-level damping adjustable monotube shocks for the ultimate in handling performance. They have even included a heat shield to help protect the right rear air spring from exhaust heat. As you can see, they have included everything to allow you to drop the rear of your Civic 5.8" from stock!
Detailed instructions will help you get your Civic slammed within a few short hours. If you have the ability to wire a stereo or swap out suspension parts, you should have no problem installing this air suspension.
In order to bring to market the most durable air suspension possible, they tortured the components of this kit to one million cycles (equivalent to approximately 100,000 miles) on their hydraulic test rig at temperatures from -30 degrees F to 150 degrees F. Couple this test lab work with thousands of miles of on-road testing-not to mention the one-year manufacturer's warranty-and this is a kit you can count on to handle whatever the road throws down!
Isn't it time you had the option of getting a killer lowered look without giving up ride quality and having to worry about scraping your ride? Ditch the springs and get to an entirely new level of low.
Front Kit Features:
Drop = 115mm/4.5"
Double bellows air springs? 30-level adjustable, threaded body, monotube struts
Modifications Required: NONE
Included with Each Kit:
Pair of air-over monotube struts
Stainless steel leader air lines
1/4" & 3/8" PTC fittings
All mounting hardware
Detailed instruction manual
Air Lift's 1-year warranty
Rear Kit Features:
Drop = 138mm/5.4"
Double bellows air springs
30-level adjustable, threaded body, monotube shocks
Modifications Required: NONE

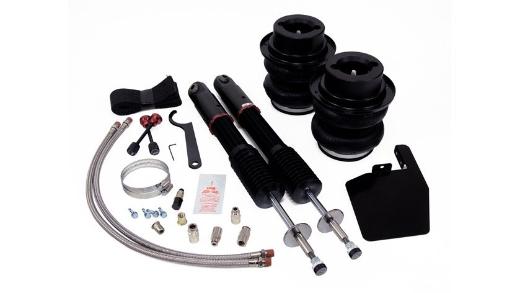

Included with Each Kit:
Pair of double bellows air springs
Pair of monotube shocks
Stainless steel leader air lines
1/4" & 3/8" PTC fittings
All mounting hardware
Detailed instruction manual
Air Lift's 1-year warranty
;Air Management Product Description:
Air Lift Performance 4-Way Manual Air Management System
Economical, simple and accurate control for all 4 wheels
Great for use with gauge and pillar pods
The system provides a maximum pressure of 175 psi
Features a VIAIR 100% duty cycle 16444 Compressor
1/4" air line for accurate and smooth adjustment
Attractive stainless steel switch plate
This Kit Includes:
Viair 444C Chrome Continuous Duty Compressor (200psi)
4 Gallon Raw Aluminum Tank
Air Line
Two Dual-Needle Pressure Gauges
4 Paddle Valves
Air Fittings
Air Line Cutter
Everything needed for installation!
Additional Information:
Shipping Weight: 23.5 lbs
Shipping Dimensions: 32 x 13 x 20 in
Air Tank Size: 4 Gallon 5-Port Tank (Raw Finish)
Compressor Size: VIAIR 444C Compressor
Air Line Size: 1/4" Air Line
Model Fitment:
2012-2015 Honda Civic (USA/JDM models, Non-Si only)
2012-2013 Honda Civic Si (USA/JDM models)
2013-2017 Acura ILX
Does NOT fit European Civics
Installation Details:
Modifications Req. Front: NONE
Modifications Req. Rear: NONE
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
