Air Lift Performance Air Suspension - Slam Series

08-16 Scion xB

Description:
With Air Lift Performance's Scion xB Performance Air suspension kit, you can get the look AND the handling you want in one easy to installation package! This kit allows you to drop your ride from the original stock height by an amazing 5.5 inches in the front and 6 inches in the rear, giving you the killer parked stance of your dreams.

Coilover suspension can't compare with the versatility of air. With infinitely adjustable ride height, no longer do you need to worry about scraping against driveway entrances or speed bumps in order to enjoy a lowered car. Forget about the punishing ride that goes with many conventional suspension choices. Wondering about the handling capability? This was tuned on the racetrack! Back-to-back tests show a lap time improvement of over one second compared to the OEM suspension. While you may never intend to track your xB, it's good to know that your car is capable of handling whatever the road throws down.

As the leader in air suspension products for over 60 years, Air Lift Performance is committed to delivering quality parts that last. To ensure longevity for the customer, the key suspension components have been tested on a durability rig for over one million cycles, which equates to 100,000 miles. With a one-year, unlimited-mileage warranty, you can purchase this kit with peace of mind. Installation is simple, with only basic hand tools required to complete the job. What's the bottom line? Great looks, awesome performance, exceptional versatility, proven durability, and easy installation...only from Air Lift Performance!

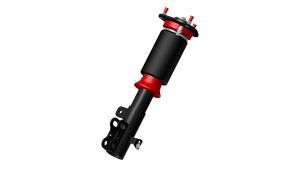

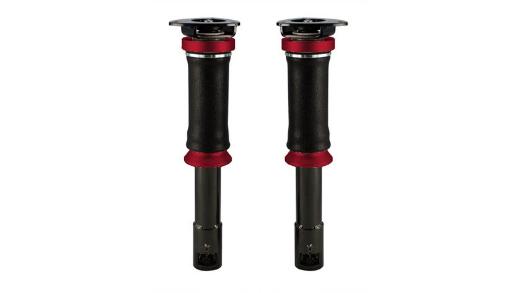

Front Kit Features:
Drop = 140mm/5.5"
Progressive rate sleeve style springs
9-level damping adjustable shocks
Powdercoated gloss black steel
Anodized red aluminum accents
2+ degrees negative front camber adjustment

Modifications Required: NONE!

Included with Each Kit:
Pair of air-over shocks with 9-level damping adjustment
Braided stainless steel leader hoses
1/4" & 3/8" PTC fittings
All mounting hardware
Detailed instruction manual
Air Lift's 1-year warranty

This kit features:
140mm/5.5" Drop
9-Level Adjustable Damping
Rubber Upper Mounts
Progressive Rate Sleeve Air Springs
No Modifications Necessary for Installation

Additional Information
Shipping Weight: 34 lbs
Shipping Dimensions: 23.5 x 14.875 x 8 in

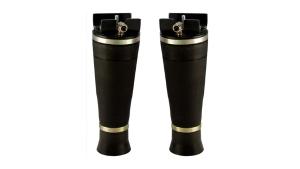

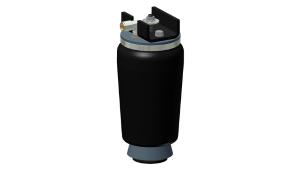

Rear Kit Features:
Drop = 152mm/6"
Progressive rate, tapered sleeve air springs
Powder-coated brackets

Modifications Required: Removal of upper and lower spring land

Included with Each Kit:
Pair of progressive rate, tapered sleeve air springs
Braided stainless steel leader hoses
1/4" & 3/8" PTC fittings
All mounting hardware
Detailed instruction manual
Air Lift's 1-year warranty

This kit features:
152mm/6.0" Drop
Progressive Rate Sleeve Air Springs

Additional Information
Shipping Weight: 10 lbs
Shipping Dimensions: 12 x 8.75 x 5.75 in

Air Management Product Description:
Air Lift Performance 4-Way Manual Air Management System
Economical, simple and accurate control for all 4 wheels
Great for use with gauge and pillar pods
The system provides a maximum pressure of 175 psi
Features a VIAIR 100% duty cycle 16444 Compressor
1/4" air line for accurate and smooth adjustment
Attractive stainless steel switch plate

This Kit Includes:
Viair 444C Chrome Continuous Duty Compressor (200psi)
4 Gallon Raw Aluminum Tank
Air Line
Two Dual-Needle Pressure Gauges
4 Paddle Valves
Air Fittings
Air Line Cutter
Everything needed for installation!

Additional Information:
Shipping Weight: 23.5 lbs
Shipping Dimensions: 32 x 13 x 20 in
Air Tank Size: 4 Gallon 5-Port Tank (Raw Finish)
Compressor Size: VIAIR 444C Compressor
Air Line Size: 1/4" Air Line

Model Fitment:
2008-2015 Scion xB

Installation Details:
Modifications Req. Front: NONE
Modifications Req. Rear: Trim for upper bracket clearance

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

• Front Installation Instructions
• Rear Installation Instructions
• Air Management Installation Instructions
