Air Lift Performance Air Suspension - Performance Series
Part #: 75539+75639+27666
$2,650.00 For each
Free Shipping! *to continental U.S. only
Fits On:
BMW 5 Series (E39) 97-03 525i, 528i, 530i, 540i, and M5
Description:
You just can't go wrong with an e39 M5? The muscular lines on this car never look dated and the performance capability is incredible. With all that excellent German engineering, you want to make sure that any suspension choice you make is worthy o? the Roundel. There are plenty of great options for your car, but there is only one that has the versatility to maximize your driving experience: Air Lift Performance!
Air Lift Performance has created the perfect suspension kit to tear up a racetrack, shred some back country roads, or to stop people dead in their tracks at a show. As the leader in aftermarket high-performance air suspension, they know what it takes to balance your ride perfectly, maximize handling capability, and maintain your ride's stunning good looks. The members of the engineering team involved in the design and development of these kits has over 35 years of road racing experience as drivers, engineers, and crew members. Performance is not just in their name-it's in their blood.
So, what does it take to have such a versatile suspension system? It all starts with a strong foundation; in this case, that's the struts. Air Lift uses 30-way adjustable, monotube struts (with a serious range of damping adjustment) that have been specially tuned to match the air springs. Monotube construction is the preferred choice in racing, and for Air Lift as well? considering its sensitivity to small inputs as well as its great ability to shed heat when pushed to the limit. The 30 clicks of adjustment aren't just for fun, but allow users to dial in their preferred handling feel or desired ride quality. The range goes from super-stiff to exceptionally soft, adjusting rebound and compression together. The struts weigh considerably less than the coil spring parts you remove, reducing unsprung weight-a benefit to both ride control and handling.
Another notable feature is the presence of adjustable camber plates in front. This allows easy, precise adjustment of the camber angle, making quick work of the alignment process for road or track. These plates are packed with high-quality, Japanese-manufactured pillow ball bearings for long life and low noise.
What sets these struts way apart from the coilover crowd is the addition of Air Lift's adjustable, progressive-rate air springs. These high-rate springs create a stable platform for aggressive track driving, while providing a level of comfort not typically found with lowered suspensions. By using this progressive nature of air springs and maximizing available suspension travel, they are able to ride low without the punishing ride...and since they allow ride height to be adjusted with a button, no longer do you have to suffer the curses of static suspension lowness? No more issues with scraping against speed bumps or steeply angled drives. Raise it up as high as stock to ride off-road without damaging the underbody.
Having good components in a kit is important, but it's just as critical to make sure they work together to give the desired result. Extensive testing at various racetracks has proven to be important in creating the proper handling balance, as well as illustrating the toughness and durability of the parts.
That's not all. Before a kit makes it to the track, the components are torture-tested on Air Lift's hydraulic test rig for over one million cycles, simulating a real-world 100,000 miles. And as an ISO 9000 certified company, Air Lift is committed to quality disciplines and continuous improvement in all areas.
Worried about installation? Every kit comes with a detailed instruction manual to guide you through all the steps. If you can install suspension and wire a stereo, you have the skills necessary for the job.
Aren't you ready to have it all? Invest in a smoother ride and maximize your handling capability-buy an Air Lift Performance kit today!

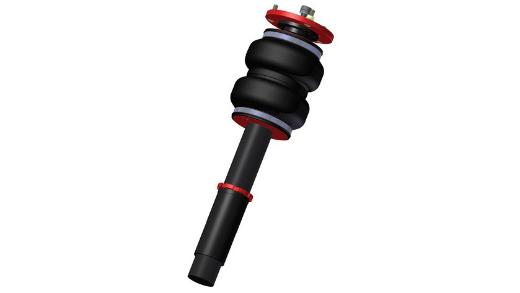

Front Kit Features:
Drop = 102mm/4.01"
Durable double bellows springs
30-level damping adjustable monotube struts
Adjustable front camber plates
Anodized red aluminum accents
Powdercoated gloss black steel brackets
Modifications Required: NONE.
Included with Each Kit:
Pair of air-over shocks with 30-level damping adjustment
Braided stainless steel leader hoses

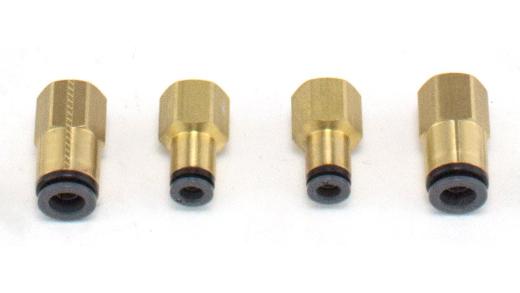

1/4" & 3/8" PTC fittings
All mounting hardware
Detailed instruction manual
Air Lift's 1-year warranty
This kit features:
102mm/4.0" Drop
30-Level Adjustable Damping
Threaded, Adjustable Strut Mounts
Proprietary Bolt-in Camber Plates
High Quality Spherical Ball Upper Mounts
High Performance Monotube Struts
Double Bellows Progressive Rate Springs
Braided Stainless Steel Leader Air Hoses
No Modifications Necessary for Installation
Additional Information
Shipping Weight: 22 lbs
Shipping Dimensions: 23.5 x 14.875 x 8 in

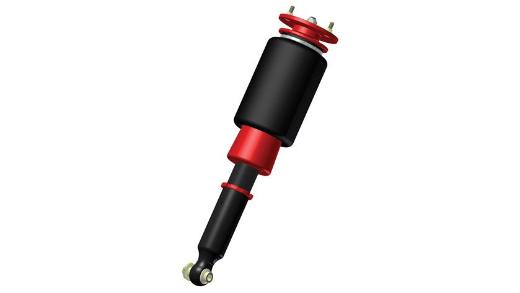

Rear Kit Features:
Drop = 124mm/4.88"
Progressive rate sleeve-style springs
30-way damping adjustable rear air-over shocks
Red anodized aluminum upper mounts
Modifications Required: NONE!
Included with Each Kit:
Pair of rear air-over shocks with 30-level damping adjustment
Braided stainless steel leader hoses

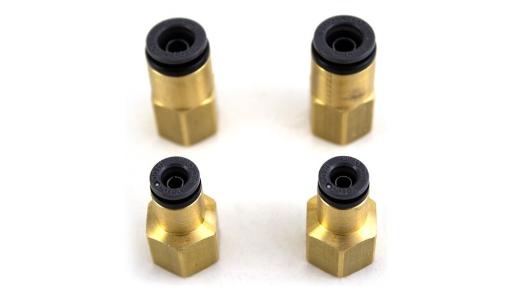

1/4" & 3/8" PTC fittings
All mounting hardware
Detailed instruction manual
Air Lift's 1-year warranty
This kit features:
124mm/4.9" Drop
30-Level Adjustable Damping
Threaded, Adjustable Shock Mounts
Rubber Upper Mounts
High Performance Monotube Shocks
Progressive Rate Sleeve Air Springs
Braided Stainless Steel Leader Air Hoses
No Modifications Necessary for Installation
Additional Information
Shipping Weight: 25 lbs
Shipping Dimensions: 23.5 x 14.875 x 8 in
Air Management Product Description:
Air Lift Performance 4-Way Manual Air Management System
Economical, simple and accurate control for all 4 wheels
Great for use with gauge and pillar pods
The system provides a maximum pressure of 175 psi
Features a VIAIR 100% duty cycle 16444 Compressor
1/4" air line for accurate and smooth adjustment
Attractive stainless steel switch plate
This Kit Includes:
Viair 444C Chrome Continuous Duty Compressor (200psi)
4 Gallon Raw Aluminum Tank
Air Line
Two Dual-Needle Pressure Gauges
4 Paddle Valves
Air Fittings
Air Line Cutter
Everything needed for installation!
Additional Information:
Shipping Weight: 23.5 lbs
Shipping Dimensions: 32 x 13 x 20 in
Air Tank Size: 4 Gallon 5-Port Tank (Raw Finish)
Compressor Size: VIAIR 444C Compressor
Air Line Size: 1/4" Air Line
Model Fitment:
1997-2003 BMW e39 Chassis
North American market 1997-2003:
525i, 528i, 530i, 540i, and M5
Europe and rest of world: 1995-2003
520i, 523i, 525i, 528i, 530i, 535i, 540i, 525tds, 525d, 530d and M5
Installation Details:
Modifications Req. Front: NONE
Modifications Req. Rear: NONE
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
